Die casting is a manufacturing process that has revolutionized the production of metal components, offering unparalleled precision and efficiency. It involves forcing molten metal under high pressure into reusable metal dies to create parts with complex shapes and fine details. Understanding the production process of die casting parts is essential for engineers, designers, and manufacturers aiming to optimize product quality and production efficiency. This article delves deep into the intricacies of die casting, exploring each step of the process, the materials used, and the advantages it offers over other manufacturing methods.
Die casting predominantly utilizes non-ferrous metals due to their excellent flow characteristics in the molten state and suitable mechanical properties. The most commonly used materials include aluminum, zinc, magnesium, and copper alloys. Each material offers unique advantages:

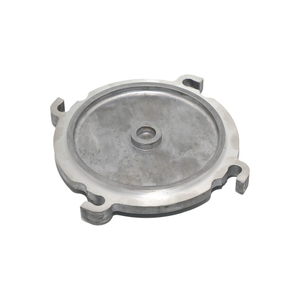

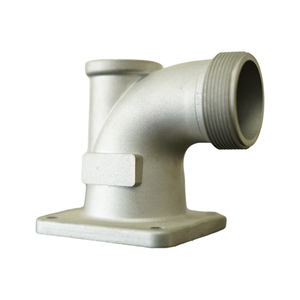

Aluminum alloys are favored for their lightweight properties and good strength-to-weight ratio. They offer excellent corrosion resistance and thermal conductivity, making them ideal for automotive and aerospace components. Alloys like A380 and ADC-12 are widely used due to their excellent casting characteristics and mechanical properties.

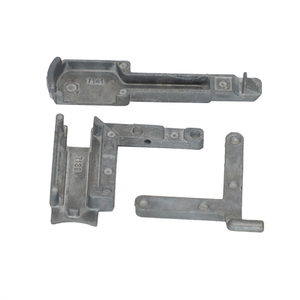

Zinc alloys, such as ZAMAK 3, are known for their high ductility and impact strength. They allow for casting of thinner walls and more intricate designs compared to other metals. Zinc die casting is commonly used in components requiring high precision, such as hardware parts, electrical components, and decorative items.
Magnesium is the lightest structural metal, providing excellent strength-to-weight ratios. Magnesium die casting is ideal for applications where weight reduction is critical without compromising structural integrity, such as in automotive and electronic housings.
Copper alloys offer superior mechanical properties, including high hardness and excellent thermal and electrical conductivity. However, they have higher melting points, which can make the casting process more challenging and costly.
Die casting involves several critical steps that must be meticulously controlled to produce high-quality parts. The process can be divided into four main stages:
Before casting begins, the die mold is cleaned and lubricated to facilitate the easy removal of the cast part and to extend the life of the mold. Lubrication also helps to control the temperature within the die during the casting process.
Molten metal is injected into the die cavity under high pressure, which ranges from 1,500 to over 25,000 psi. The high pressure ensures that the metal fills the entire cavity and that the part has a dense, uniform grain structure. This step is rapid, typically lasting less than a second, to prevent solidification before the mold is completely filled.
Once the cavity is filled, the molten metal begins to cool and solidify. Cooling time depends on the part's geometry and the material used. Proper cooling is essential to prevent defects such as shrinkage, porosity, and incomplete casting.
After the part has solidified, the die halves are opened, and ejector pins push the casting out of the mold. The casting is then separated from any excess material, such as sprues and runners, which can be recycled for future use.
Die casting processes are primarily categorized based on how the molten metal is introduced into the die. The two main types are hot chamber and cold chamber die casting.
In hot chamber die casting, the pressure chamber is submerged in the molten metal. A plunger forces the metal into the die cavity through a gooseneck. This method is suitable for metals with low melting points and high fluidity, such as zinc and magnesium alloys. The process is fast, with cycle times of less than a second for small components.
Cold chamber die casting involves ladling the molten metal into a chamber before it is injected into the die under high pressure. This method is used for metals with higher melting points, like aluminum and copper alloys, that would damage the pumping system of a hot chamber machine. Although cycle times are longer due to the ladling step, it is necessary for these materials.
Effective design is crucial in die casting to ensure manufacturability and to minimize defects. Designers must consider factors such as wall thickness, draft angles, fillets, and parting lines.
Uniform wall thickness helps in reducing stress concentrations and prevents defects like warping and shrinkage. Thicker walls can lead to longer cooling times and increased porosity, while thinner walls might not fill properly.
Draft angles facilitate the removal of the casting from the die without damaging the part or the mold. Typically, a draft of at least one degree is recommended for internal surfaces and around two degrees for external surfaces.
Sharp corners are stress concentrators and can lead to cracking or incomplete filling. Incorporating fillets and radii in the design distributes stress more evenly and improves the flow of molten metal within the die.
The parting line is where two halves of the die meet. Designers should place parting lines in areas that minimize their impact on the function and aesthetics of the part. Proper positioning can also simplify the mold design and reduce manufacturing costs.
Die casting offers numerous advantages over other manufacturing processes:
High production rates, capable of producing thousands of identical parts rapidly.
Excellent dimensional accuracy and surface finish, reducing or eliminating the need for post-processing.
The ability to produce complex shapes with thin walls and tight tolerances.
Efficient use of materials with minimal waste, as excess metal can often be recycled.
Versatility in producing parts with varying sizes and weights.
Maintaining high quality in die casting parts involves rigorous quality control measures throughout the production process. Key aspects include:
Ensuring the purity and proper composition of the metal alloys is essential. Impurities can lead to defects like porosity and poor mechanical properties.
Continuous monitoring of process parameters such as injection speed, pressure, and temperature helps in maintaining consistency and identifying issues promptly.
Techniques such as X-ray inspection, ultrasonic testing, and dye penetrant inspection are used to detect internal and surface defects without damaging the parts.
Precision measurement tools and coordinate measuring machines (CMM) verify that the parts meet the specified dimensions and tolerances.
After casting, parts often undergo additional processes to enhance their properties or prepare them for assembly:
Excess material, such as flash or overflows, is removed to improve the part's appearance and fit. Automated trimming presses or manual tools may be used depending on the complexity and volume.
Surface finishing processes like polishing, painting, powder coating, or plating enhance the appearance and corrosion resistance of the parts. For instance, anodizing aluminum die castings can improve surface hardness and aesthetic appeal.
Heat treatment processes like annealing or aging can alter the mechanical properties of the alloy, such as increasing strength or ductility.
While die casting achieves high precision, some parts may require additional machining to meet tight tolerances or to create features not possible in casting. CNC machining is commonly used for this purpose.
Die casting parts are integral to numerous industries due to their reliability and efficiency in production. Notable applications include:
Die cast components are used extensively in vehicles for engine parts, transmission cases, gearbox housings, and structural components. The method allows for lightweight designs without compromising strength, contributing to overall vehicle efficiency.
In aerospace, die casting produces components that require high precision and strength-to-weight ratios, such as brackets, housings, and structural elements. The ability to produce complex shapes supports innovative design solutions in aircraft manufacturing.

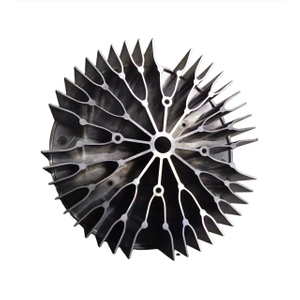

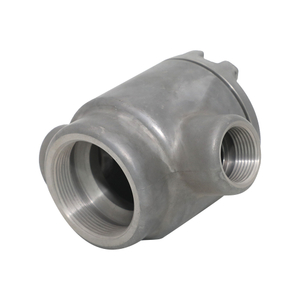

Die cast enclosures and heat sinks are common in electronic devices due to their thermal conductivity and shielding properties. Components like connector housings and frames benefit from the process's precision and surface finish.
Household appliances, tools, and recreational equipment often utilize die cast parts for their durability and aesthetic possibilities. Products like lighting fixtures, kitchen appliances, and fitness equipment incorporate die cast components.
The die casting industry continues to evolve with advancements in technology and materials. Some emerging trends include:
Research into new alloys aims to reduce weight while maintaining or improving mechanical properties. This is particularly significant for automotive and aerospace industries focused on energy efficiency and emission reductions.
Incorporating automation and smart technologies enhances process control, reduces cycle times, and improves quality. Real-time data analytics and machine learning enable predictive maintenance and optimized production schedules.
Efforts to reduce environmental impact include recycling scrap material, reducing energy consumption through process optimization, and developing more sustainable alloys.
Combining die casting with additive manufacturing techniques allows for greater design flexibility and the creation of hybrid components. This synergy can lead to innovative products and streamlined production methods.
Understanding the production process of die casting parts is crucial for leveraging its full potential in manufacturing high-quality metal components. The ability to produce complex shapes with excellent mechanical properties and surface finishes makes die casting an indispensable process in modern industry. As technology advances, the integration of automation, new materials, and sustainable practices will further enhance the capabilities and applications of die casting.
