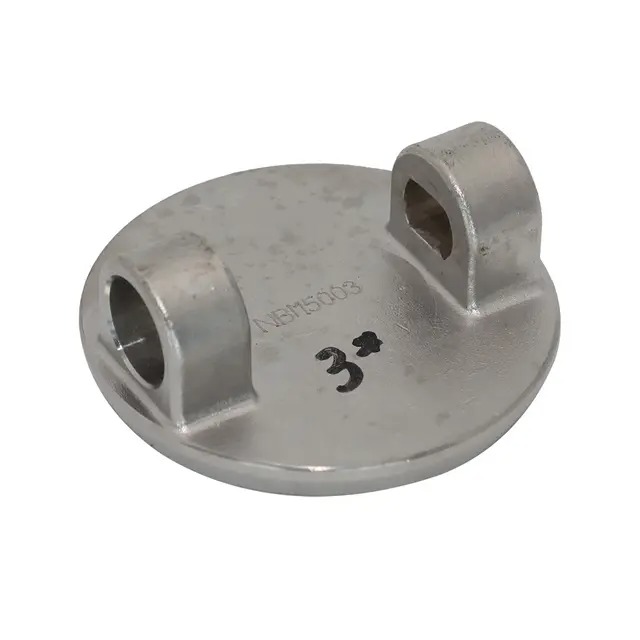

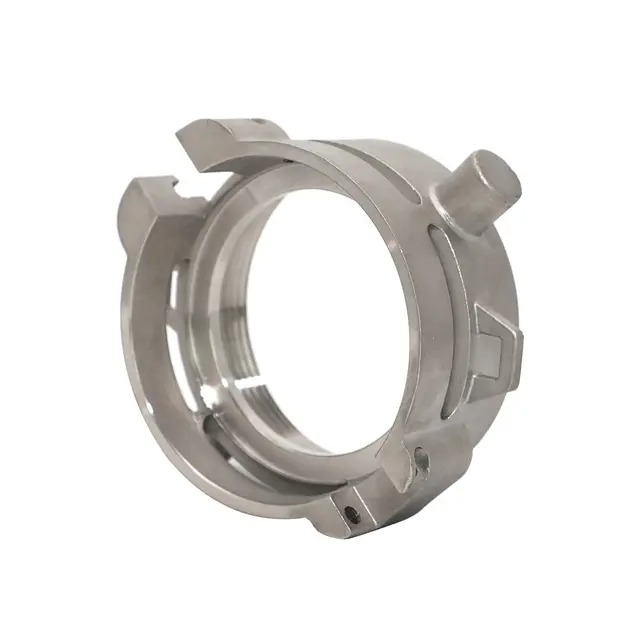

Stainless steel casting is one of the most versatile and precise manufacturing processes used in modern industries. From aerospace to food processing, stainless steel casting parts are integral components that demand accuracy, strength, and corrosion resistance. Understanding how these parts are made allows engineers, manufacturers, and buyers to appreciate the complexity and craftsmanship behind them. The process of making stainless steel casting parts involves several critical stages—from design and mold creation to casting, heat treatment, and finishing—each influencing the performance and quality of the final product.
Stainless steel casting is a metal-forming process that creates complex parts by pouring molten stainless steel into a mold, allowing it to solidify and take shape. The key advantage lies in its ability to produce highly detailed geometries with superior surface finishes compared to other manufacturing methods like machining or forging.
| Industry | Example Parts | Key Requirements |
|---|---|---|
| Automotive | Exhaust manifolds, turbo housings | High heat resistance |
| Aerospace | Turbine blades, brackets | Precision and light weight |
| Medical | Surgical tools, implants | Biocompatibility |
| Food Processing | Valves, fittings, blades | Corrosion resistance |
| Marine | Pumps, propellers | Anti-corrosion and strength |
The ability to tailor alloys for specific conditions—such as heat resistance or chemical exposure—makes stainless steel casting an indispensable technique in manufacturing.
Selecting the correct stainless steel alloy determines the mechanical properties, corrosion resistance, and casting quality of the final part. Not all stainless steels behave the same under casting conditions.
| Alloy Type | Key Features | Common Uses |
|---|---|---|
| 304 (Austenitic) | Excellent corrosion resistance, good weldability | Food-grade equipment |
| 316 (Austenitic) | Enhanced resistance to chlorides | Marine and chemical industries |
| 410 (Martensitic) | High strength, moderate corrosion resistance | Pump components |
| 17-4 PH (Precipitation Hardening) | Superior strength and hardness | Aerospace components |
Before casting, engineers evaluate the operational environment and performance expectations of the stainless steel casting parts. For example, marine components require enhanced chloride resistance, while structural parts prioritize strength and fatigue resistance.
Effective casting starts with smart design. The geometry, dimensions, and tolerances of a part directly influence the success of the casting process.
1. Uniform Wall Thickness: Avoids uneven solidification and internal stresses.
2. Draft Angles: Facilitates easy mold removal and reduces surface defects.
3. Fillets and Rounds: Minimizes stress concentration points.
4. Gating and Risers: Ensures smooth metal flow and prevents porosity.
4. Tolerances: Must be realistic to avoid costly secondary machining.
By using 3D modeling and casting simulation software, engineers can predict metal flow behavior, shrinkage, and potential defects—reducing trial and error in production. Proper design not only enhances quality but also optimizes cost efficiency.
The investment casting method is the most common and precise approach for producing stainless steel casting parts. It allows for exceptional detail and tight dimensional control.
1. Wax Pattern Production: A wax model is made using a metal mold. This model replicates the exact geometry of the final casting.
2. Assembly and Treeing: Multiple wax patterns are attached to a central wax runner, forming a “tree.”
3. Shell Building: The wax assembly is repeatedly dipped into ceramic slurry and coated with fine sand. After several layers, a hard shell forms around the wax.
4. Wax Removal: The shell is heated, melting and draining the wax—leaving a hollow ceramic mold.
5. Preheating the Mold: The mold is fired to remove residual wax and moisture, preparing it for molten metal.
Investment casting provides superior surface quality and dimensional precision compared to sand casting, especially for complex stainless steel components.
This phase transforms solid stainless steel alloys into molten metal ready for casting. Precision in melting and pouring determines the internal structure and consistency of stainless steel casting parts.
1. Melting Furnace: Electric induction furnaces are commonly used for accurate temperature control and alloy purity.
2. Temperature Monitoring: The alloy is heated typically between 1600°C–1700°C depending on composition.
3. Deoxidation: Elements such as silicon or aluminum are added to remove oxygen and prevent porosity.
4. Alloy Additions: Final alloying elements are introduced to meet specific mechanical or corrosion resistance requirements.
Once molten metal reaches the correct composition and temperature, it is poured into the preheated ceramic molds under gravity or vacuum. Controlled pouring minimizes turbulence and air entrapment, ensuring a dense, defect-free structure.
After pouring, the molten stainless steel solidifies inside the mold. Controlled cooling ensures a stable microstructure and prevents cracking.
The ceramic shell is broken after the metal cools, revealing the rough casting.
Shot blasting or water jet cleaning removes remaining ceramic and surface oxides.
Individual castings are cut from the “tree,” ready for further processing.
Heat treatment refines the internal grain structure, improving mechanical properties such as hardness, ductility, and corrosion resistance.
| Heat Treatment Type | Temperature Range | Purpose |
|---|---|---|
| Solution Annealing | 1000–1100°C | Dissolves carbides, enhances corrosion resistance |
| Aging/Precipitation | 480–620°C | Increases hardness (especially in 17-4 PH) |
| Stress Relieving | 600–700°C | Reduces internal stress after machining |
The combination of controlled cooling and heat treatment determines the ultimate quality of stainless steel casting parts.
Even after casting, stainless steel parts require precision finishing to meet exact dimensional tolerances and aesthetic standards.
CNC Machining: Used to refine dimensions, drill holes, and create fine threads.
Grinding and Polishing: Achieves smooth surfaces or mirror-like finishes.
Deburring: Removes sharp edges and surface imperfections.
| Finishing Type | Description | Typical Application |
|---|---|---|
| Pickling and Passivation | Removes oxide layers and enhances corrosion resistance | Food-grade or chemical parts |
| Electropolishing | Smooths microscopic peaks for high luster and cleanliness | Medical instruments |
| Sandblasting | Creates matte or uniform surface | Automotive and structural components |
Every stainless steel casting part undergoes rigorous inspection to ensure it meets design and performance requirements. Common testing methods include:
Dimensional Inspection: Using CMM or gauges.
Non-destructive Testing (NDT): Includes X-ray, dye penetrant, or ultrasonic tests for internal flaws.
Mechanical Testing: Verifies hardness, tensile strength, and impact resistance.
Even with advanced casting techniques, defects can occur. Understanding and preventing these issues ensures consistent product quality.
| Defect | Cause | Prevention |
|---|---|---|
| Porosity | Gas entrapment during pouring | Control pouring speed and deoxidation |
| Shrinkage | Insufficient feeding or improper gating | Optimize riser design |
| Cracks | Rapid cooling or stress concentration | Controlled cooling and uniform thickness |
| Surface Roughness | Poor mold surface or ceramic breakdown | Use fine ceramic materials and proper coating |
| Misruns | Low metal temperature | Maintain adequate molten metal temperature |
Preventive measures and process monitoring are key to producing flawless stainless steel casting parts suitable for high-performance applications.
Making stainless steel casting parts is a precise, multi-step process that blends art and science. From alloy selection and design optimization to investment casting, heat treatment, and surface finishing, each stage contributes to the final product’s performance and reliability. Manufacturers who master these stages can produce parts that excel in durability, corrosion resistance, and dimensional accuracy—making stainless steel casting a cornerstone of modern engineering and manufacturing excellence.
1. What is the best method to produce stainless steel casting parts?
The investment casting (lost-wax) method is considered the best for producing high-precision stainless steel casting parts with excellent surface finish and dimensional accuracy.
2. How long does it take to make a stainless steel casting part?
Depending on size and complexity, the process can take from several days to a few weeks, including mold preparation, casting, cooling, and finishing.
3. Can stainless steel casting parts be welded or machined after casting?
Yes. Stainless steel castings can be machined and welded, though post-casting heat treatment is often recommended to restore mechanical strength.
4. What are the main benefits of stainless steel casting parts over machining?
Casting allows for complex shapes, reduced material waste, and cost-effective mass production—while machining is better suited for small batches or fine tolerances.
5. How to ensure corrosion resistance in stainless steel castings?
Proper alloy selection (e.g., 316 or 17-4PH), controlled melting, and surface treatments like passivation or electropolishing are essential for optimal corrosion resistance.
