Moving a metal component from a rough prototype into high-volume production presents a complex engineering challenge. You must balance aggressive unit economics against incredibly strict dimensional tolerances. This transition rarely forgives guesswork or untested assumptions.
Choosing the wrong die type or ignoring material constraints will severely disrupt your manufacturing timeline. These missteps lead to excessive tooling rework and drive up daily scrap rates. Worse, improper forming techniques often compromise the structural integrity of the final parts. You cannot afford these systemic failures during a critical scaling phase.
This guide breaks down the harsh engineering realities behind commercial metal and Steel Stamping. We offer a verifiable framework to help you evaluate different forming processes and mitigate hidden design risks early. By applying these principles, you will protect your production budget.
You will also learn exactly how to shortlist reliable manufacturing partners. We provide specific criteria to ensure your chosen supplier can deliver consistent, high-quality yields without constant micromanagement.
Process Selection Dictates ROI: Progressive die stamping maximizes output for complex, high-volume runs, while hot stamping is non-negotiable for ultra-high-strength steel applications.
Design for Manufacturability (DFM) is Mandatory: Simple adherence to rules—like matching cutting clearance to 10% of material thickness—prevents costly edge defects and die wear.
Tooling Ownership Matters: The total cost of a stamping run must account for tool and die maintenance, not just the per-part production cost.
Quality Requires Predictability: Modern QA relies on proactive methods, including digital twin simulation and automated optical inspection, to predict defects before the press runs.
Selecting the correct stamping method defines your entire production strategy. Each process handles specific geometries and volume requirements differently. You must align your component design with the most capable technology.
Progressive die systems feed a continuous strip of coiled steel through multiple sequential stations. Each station performs a distinct operation. The part remains attached to the carrier strip until the final cutoff step. This approach demands a very high initial tooling cost. Die makers must engineer complex, multi-stage tooling blocks.
However, the trade-off strongly favors high-volume production. Once running, mechanical presses can achieve up to 1,500 strokes per minute. This yields the lowest possible per-part cost at scale. It completely automates part handling between operational steps.

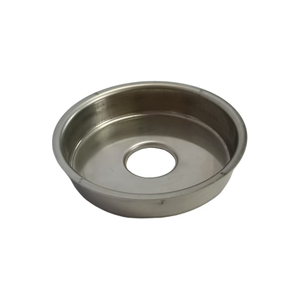

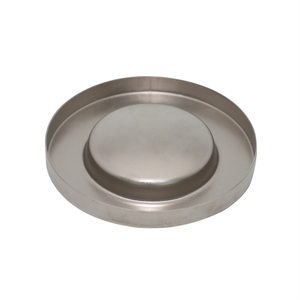

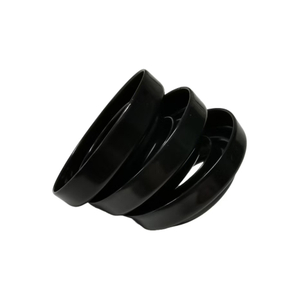

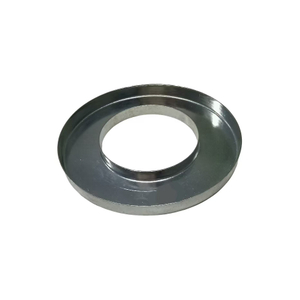

Engineers specify deep draw stamping when the depth of the draw exceeds the part's overall diameter. Common examples include cylindrical enclosures, battery casings, and automotive cylinders. You cannot perform this on a standard mechanical press. The process requires highly specialized hydraulic presses to maintain precise force control.
As the punch forces the metal blank into the die cavity, the material stretches significantly. Hydraulic systems apply constant, controlled pressure to prevent wall thinning and tearing. Consequently, cycle times run slower than progressive stamping. You trade raw speed for extreme geometric manipulation.
Many critical components require fully sheared, smooth edges straight out of the press. Standard blanking leaves a rough break line across the material edge. Fine blanking solves this issue. It uses a specialized V-ring impingement system. The V-ring bites into the metal blank before the punch makes contact.
This immense clamping pressure prevents the metal from flowing away from the punch. The resulting edge is 100% cleanly sheared. You can reliably achieve tolerances tighter than 0.0005 inches. This precision completely eliminates the need for expensive secondary CNC machining operations.

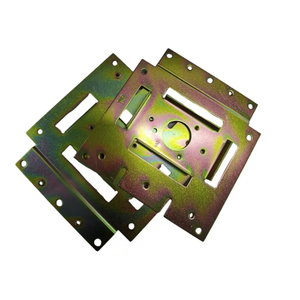

Manufacturers rely on cold stamping for most carbon and stainless steels. It operates at room temperature. The process is extremely fast, highly repeatable, and energy-efficient. Cold Steel Stamping easily handles typical brackets, chassis components, and consumer goods.
Hot stamping serves a much more extreme operational purpose. Facilities heat steel blanks to roughly 1700°F (900°C) inside a specialized furnace. Robots transfer the glowing hot blank to a cooled die. The press stamps the part and simultaneously quenches the material. Cycle times drop drastically, requiring 10 to 30 seconds per stroke.
Despite the slow speed, this is the only reliable way to achieve extreme strength-to-weight ratios. Modern aerospace frames and automotive crash structures absolutely require this martensitic transformation.
Stamping Method | Primary Use Case | Core Advantage | Main Limitation |
|---|---|---|---|
Progressive Die | High-speed continuous runs | Lowest per-part cost | High initial tooling capital |
Deep Draw | Deep cylindrical components | Extreme metal stretching | Requires slower hydraulic cycles |
Fine Blanking | Precision gears and plates | Zero secondary machining | Requires soft-to-medium steel grades |
Hot Stamping | Automotive crash structures | Maximum tensile strength | Very slow cycle times (10-30s) |
Good process selection fails if the component design violates physical manufacturing constraints. Design for Manufacturability (DFM) forces engineers to respect the metal's natural limits. Ignoring these rules guarantees costly tooling revisions and unacceptable defect rates.

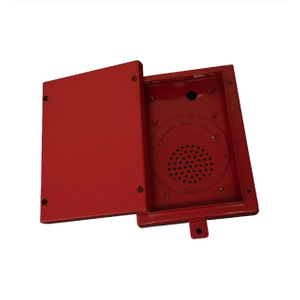

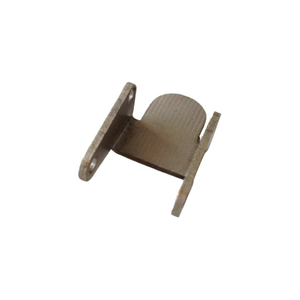

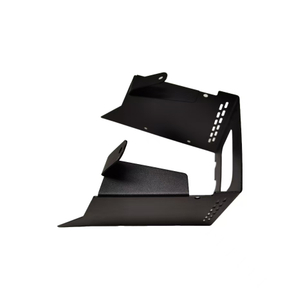

Respect the minimum bend height: Your design must provide enough material for the press brake or die to grip. The minimum bend height must equal at least 2.5 times the material thickness, plus the intended bend radius. Shorter flanges will slip, causing severe dimensional variations.
Orient across the grain: Sheet steel possesses a directional grain structure created during the rolling process. Bending high-strength steel parallel to its grain direction invites disaster. It causes microscopic fractures along the bend line. You must orient your flat pattern layouts so bends occur across the grain direction.
Die clearance dictates the quality of every single cut. When a punch strikes the metal, it creates a clean cut band and a fractured break line. Standard cutting clearances should be meticulously engineered to approximately 10% of the material thickness.
Maintaining this 10% ratio prevents excessive edge roll-over. It minimizes the rough break line. Proper clearance dramatically extends punch life by reducing friction. Ultimately, it yields a cleaner part and drastically reduces the need for secondary deburring.
Cramming holes and cutouts too close together weakens the die structure. Notches and tabs should maintain a width of at least 1.5 times the material thickness. If you design features narrower than this ratio, the thin tool steel punches will snap under repetitive stress.
Furthermore, placing holes too close to a bend radius distorts the hole geometry. The stretching forces during the bending phase will pull a round hole into an oval. You must distance all critical holes from bend zones by at least three times the material thickness.
The press itself acts as the heartbeat of the manufacturing floor. You cannot swap press types interchangeably. The mechanical behavior of the ram dictates what types of metal you can successfully form.
Mechanical presses rely on a massive, heavy flywheel. A motor spins the flywheel to store kinetic energy. A clutch engages, transferring this energy to a crankshaft. The crankshaft drives the ram downward.
This design makes mechanical presses the undisputed industry standard for rapid, high-volume blanking. They hit fast and hard. However, they lack variable stroke speed control. The ram always hits bottom dead center at full velocity. You cannot slow the punch down mid-stroke to accommodate delicate drawing operations.
Hydraulic presses discard the flywheel. They use pressurized fluid to drive a large piston. This mechanism delivers constant, predictable force throughout the entire stroke. You control exactly how much pressure the ram applies at any given millimeter.
This steady force makes hydraulic presses ideal for deep drawing and complex forming. They allow the metal to flow smoothly into the die cavity without tearing. The inherent trade-off is cycle speed. Pumping hydraulic fluid takes time. These machines run significantly slower than mechanical presses.
Servo presses represent the pinnacle of modern forming technology. High-capacity servomotors directly drive the press mechanics. This design combines mechanical speed with absolute hydraulic-like precision. You can fully program complex stroke profiles.
Engineers can program the ram to approach rapidly, slow down right before impact, and hold pressure at the bottom. This specialized control profile effectively eliminates springback in high-tensile steel stamping. While highly energy-efficient and precise, the capital expenditure for servo presses is massive. This limits their practical use to premium, high-complexity production runs.
Table 1: Press Technology Characteristics | |||
Press Type | Drive Mechanism | Speed Profile | Best Application |
|---|---|---|---|
Mechanical | Flywheel & Crankshaft | Fixed, very high speed | Flat blanking, progressive dies |
Hydraulic | Pressurized Fluid | Constant, slower speed | Deep drawing, slow forming |
Servo-Driven | Direct Servomotors | Fully programmable | High-tensile complex forming |
Quality cannot be inspected into a part after it fails. Modern manufacturing demands proactive defect prevention. Engineers must anticipate metallurgical behaviors before physical production begins.
High-strength steels naturally attempt to revert to their flat state after a press bends them. Engineers call this elastic recovery, or springback. It ruins dimensional accuracy if left unmanaged.
Abandoning Air Bending: Standard air bending simply pushes the metal into a V-die without bottoming out. This method cannot reliably control severe springback in advanced steels.
Implementing Bottoming: The punch forces the sheet fully into the die cavity. This reduces the inner radius and limits the material's ability to spring open.
Executing Coining: This method applies extreme compressive force. The punch actually penetrates the neutral axis of the metal. Coining permanently aligns the metallurgical structure, virtually eliminating springback entirely.
Traditional quality assurance relies heavily on physical verification. Shops use a Coordinate Measuring Machine (CMM) to map the geometry of finished parts. This verifies dimensional accuracy against the CAD model. While necessary, it remains a reactive process.
Cutting-edge facilities push QA into the virtual space. They implement digital twin technology. Software simulates the precise material flow of a specific steel grade. Engineers watch the virtual press run millions of calculations. The system predicts shear fractures and break line defects before anyone cuts physical tool steel. This proactive approach saves thousands of dollars in wasted die trials.
Even the most robust component design will fail in the hands of an unqualified manufacturer. Vetting a partner requires moving beyond simple per-part price quotes. You must audit their actual engineering and infrastructure capabilities.
Your primary evaluation criterion must focus on tool and die ownership. Do they design, machine, and maintain their dies entirely in-house? Many shops outsource die construction to overseas job shops to save money.
Outsourced tooling significantly increases your lead times. When a punch breaks or a die needs routine sharpening, an in-house team fixes it the same day. An outsourced arrangement requires shipping components back and forth. Routine maintenance suddenly halts your production for weeks.
Never assume a shop can handle your part just because they stamp metal. Ensure the supplier's press limits match your specific Steel Stamping gauge requirements. Press sizes range widely, from small 100-ton machines up to massive 1,000-ton behemoths.
If you need to form thick, ultra-high-strength steel chassis components, a shop equipped only with 200-ton presses will fail. The material yield strength determines the required tonnage. Request an equipment list upfront and verify their capacity aligns with your CAD specifications.
Regulated industries tolerate zero ambiguity. For medical devices, automotive systems, or aerospace structures, you must demand rigorous compliance. Look for active ISO 9001 or IATF 16949 certifications.
Furthermore, evaluate their data tracking systems. They must provide full lot traceability. If a part fails in the field five years later, the manufacturer must trace that specific component back to the exact steel coil it originated from. Weak inventory software indicates a high-risk partner.
Successful large-scale production relies entirely on mathematically sound DFM. You must pair the correct press technology directly to your chosen material grade. An arbitrary choice between progressive and deep draw methods guarantees failure. Furthermore, a proactive tooling strategy that anticipates wear and prevents downtime is non-negotiable.
Before you send drawings out for quotes, lock down your CAD models. Verify you have integrated correct tooling clearances and accounted for material grain direction. Finally, demand a comprehensive DFM review from prospective stamping partners. If they agree to run your parts without suggesting any engineering optimizations, find a new partner.
A: Progressive stamping keeps parts attached to a continuous carrier strip until the final cutoff operation. It offers maximum speed for high volumes. Transfer stamping separates the blank immediately. Mechanical fingers then move the loose part between individual die stations. Transfer methods work much better for deep-drawn or highly contoured parts.
A: Yes, particularly at high volumes. Processes like fine blanking or deep drawing can achieve near-net shapes directly from the press. This eliminates the need for secondary CNC turning or milling. It drastically reduces unit costs while maintaining tight tolerances on the final edges.
A: Die cost is determined by the number of operational stations required to form the complex geometry. Furthermore, the hardness of the tool steel needed to withstand millions of repetitive production cycles increases material and machining costs. Tight part tolerances also demand more expensive precision grinding.
A: No. Short-run or prototype stamping utilizes softer, cheaper tooling materials. Manufacturers often combine laser-cut blanks with simpler press brake forming. This strategy avoids high upfront capital expenditures before an engineering team fully locks in the final design.
