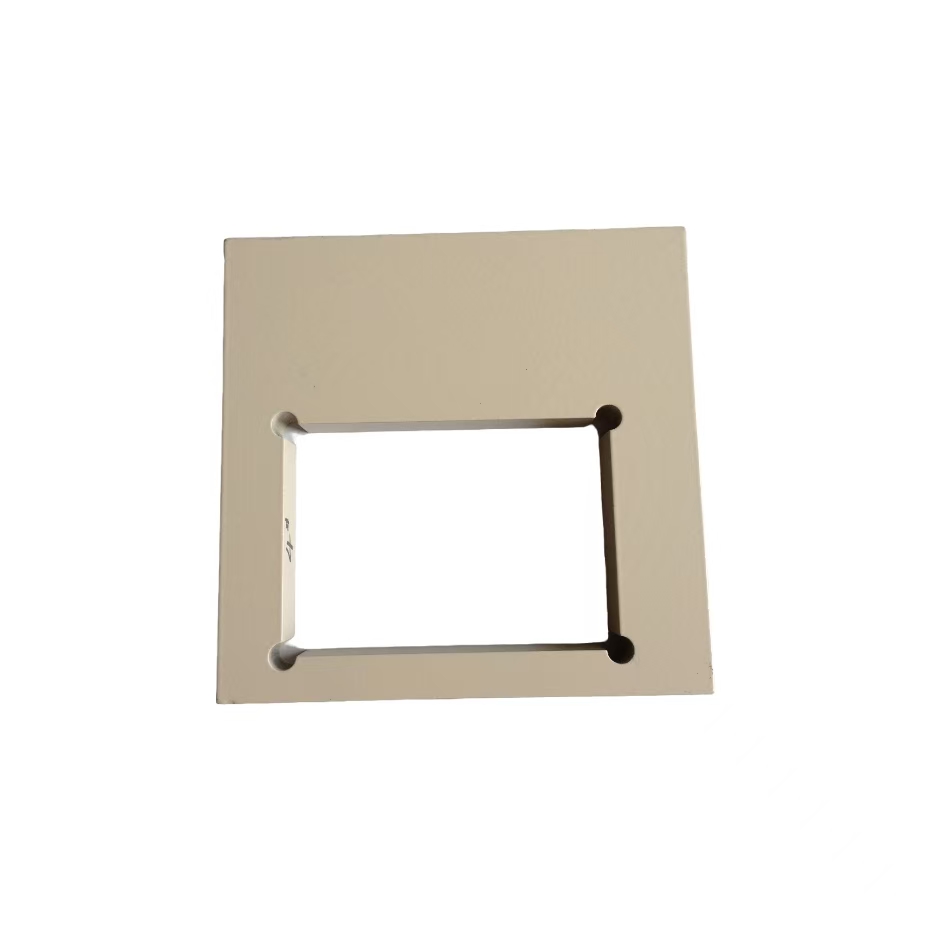

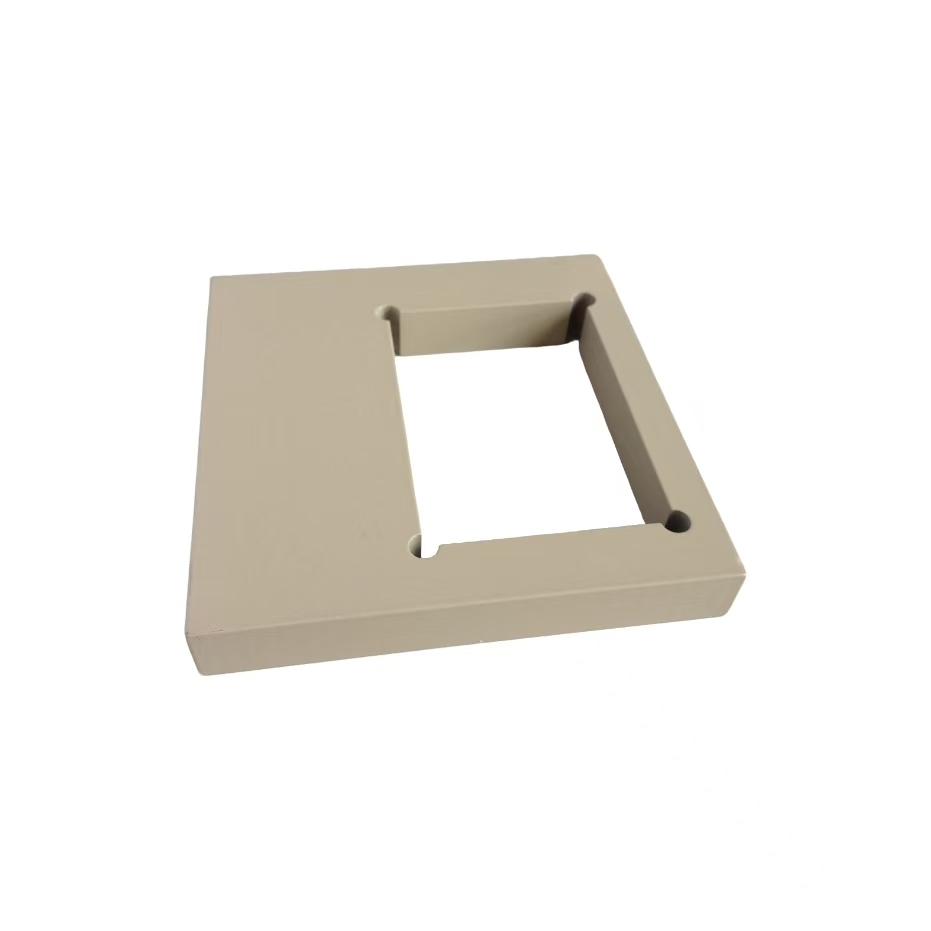

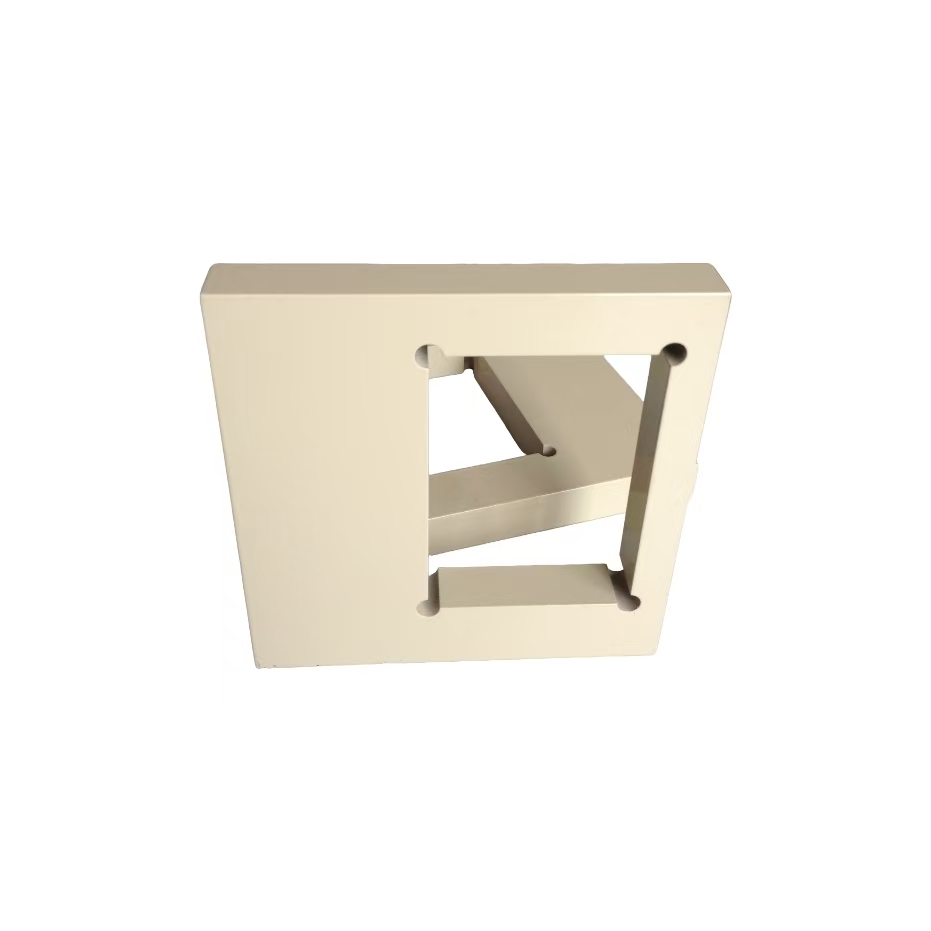

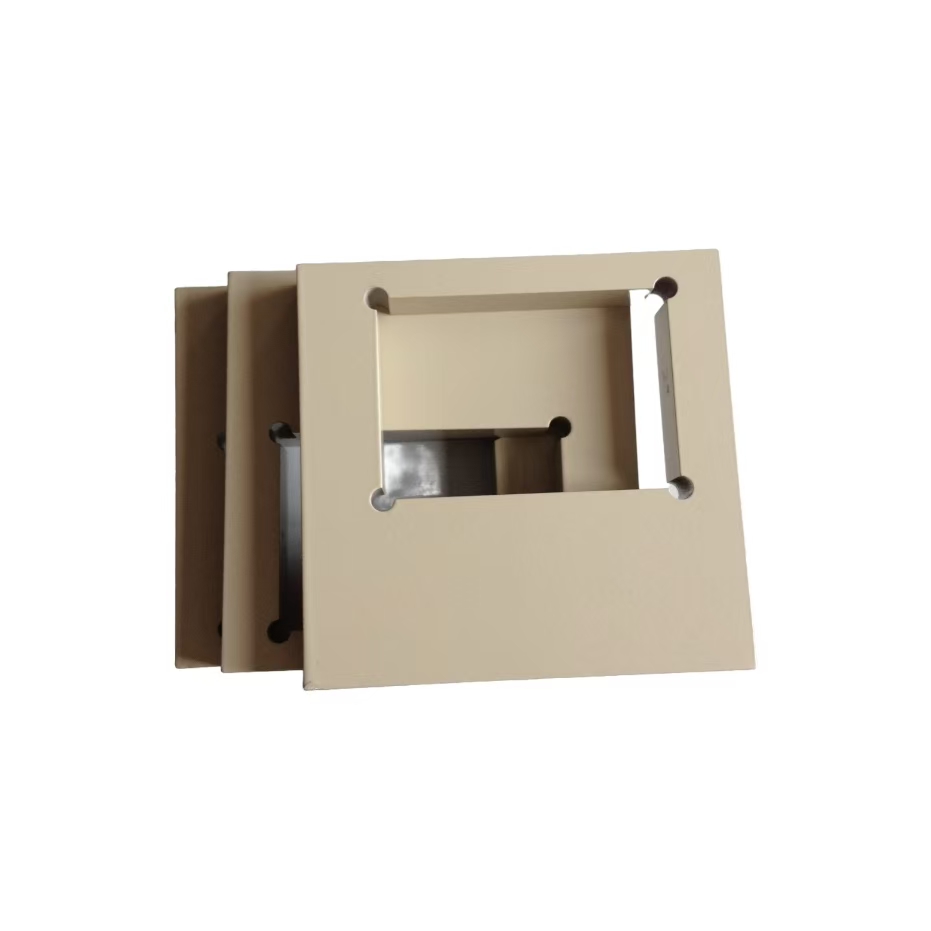

6061T6 Aluminum CNC Machined Parts, Custom Design, Powder Coated

Some Surface Treatments To Aluminum Alloy Parts

Sandblasting

Sandblasting process utilizes high-speed sand flow to impact the surface of aluminum alloy, thereby achieving the purpose of cleaning and increasing surface roughness. Sandblasting treatment can remove oil stains, oxide layers and other impurities on the surface of aluminum alloys, providing a good adhesion foundation for subsequent surface treatments such as spraying and electroplating.

Polishing

Polishing is a common process in the surface treatment of aluminum alloys. It removes the uneven parts of the surface through mechanical, chemical or electrolytic methods, making it as smooth as a mirror. In aluminum alloy processing, mechanical polishing and electrolytic polishing are the most widely used.

Brushing

The brushing process is to form regular lines on the surface of aluminum alloy through grinding to achieve a decorative effect. Brushing treatment can not only enhance the aesthetic appeal of the product, but also cover up some minor surface defects.

Anodizing

Anodizing is a chemical treatment method that forms an aluminum oxide film on the surface of aluminum alloys through electrolysis. The anodic oxide film features high hardness, good wear resistance and strong corrosion resistance, which can effectively protect the aluminum alloy substrate from erosion by the external environment. Meanwhile, the porous structure of the anodic oxide film endows it with excellent adsorption properties, enabling it to adsorb various pigments and dyes and form a rich variety of surface colors.

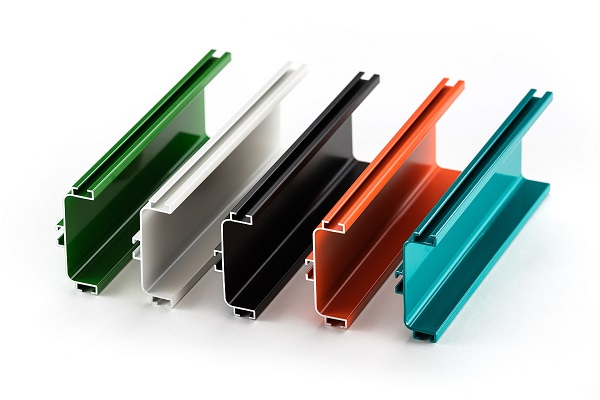

Coating

Coating is a process method in which paint is evenly applied to the surface of aluminum alloy. Coating not only protects the surface of aluminum alloy from corrosion and wear, but also endows it with rich colors and textures. Coating processes include various types such as powder coating, electrophoretic coating, and fluorocarbon coating. Powder coating evenly applies powder coatings on the surface of aluminum alloys through the principle of electrostatic adsorption, and then forms a firm coating through high-temperature curing.

All of our CNC precision machined aluminum alloy parts are customized according to customer drawings or designs. Belows are our work chart for the non-standard metal parts:



Advantages of Aluminum CNC Machined Parts, Custom Design:

• The material properties are irreplaceable

  6061T6 Aluminum alloy  : Tensile strength ≥310MPa, lightweight (density 2.7g/cm³) while maintaining high strength, corrosion resistance three times that of ordinary steel, suitable for extreme temperature environments (-100°C to +150°C), meeting high-demand scenarios such as aerospace and medical devices.




• Precision Manufacturing Hard Power

  Flexible Customization Capability : Supports full-chain services from prototype design to mass production, with 72-hour rapid sample making and seamless adaptation to small-batch trial production or orders of tens of thousands of pieces.




• Surface treatment enhances product lifespan

  Powder Coating Technology  : 200+ RAL standard color numbers are available for selection. The adhesion of the coating reaches ASTM D3359 Class 5B. The wear resistance is increased by 50%, and the anti-UV aging performance extends the outdoor service life of the components by 5-8 years.




• Maximize cost-effectiveness

  No mold cost  : CNC direct molding, avoiding mold opening costs. It is particularly suitable for medium and small batch orders, allowing customers to save more than 50% of their initial investment.




• Lifetime Warranty Commitment

  Free replacement for non-human damage, providing failure analysis and improvement plans to reduce supply chain risks for customers.

Packaging:

FAQ:

1Q: Why choose 6061T6 aluminum alloy instead of other materials?

1A: 6061T6 far surpasses ordinary aluminum materials in terms of the balance between strength (tensile strength 310MPa) and weight (2.7g/cm³).

2Q: What materials are needed for custom design?

2A: You only need to provide 3D drawings (in STEP/IGS format) or hand-drawn sketches. We offer free DFM (Manufacturability Analysis) and provide optimization suggestions (such as weight reduction hole positions and stress concentration point adjustments) within 24 hours.

3Q: Is the unit price of small-batch orders too high?

3A: We have increased the material utilization rate to 98% through the AI intelligent material arrangement system and eliminated the mold cost. The cost per piece is reduced by 35%, and it supports orders with a minimum quantity of 50 pieces or more, with no minimum consumption threshold.

4Q: What is the standard leadtime for samples or mass production?

4A: 2-3 weeks for samples, 4-5weeks for mass production.

5Q: How to solve quality problems?

5A: We offer a lifetime warranty. For non-human damage, we will issue a new part within 72 hours and provide a failure analysis report (such as SEM scan of the fracture surface and stress simulation data) as a gift.
